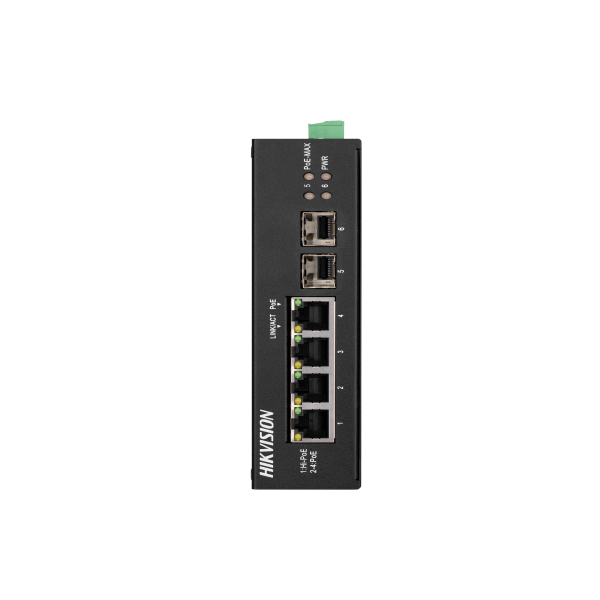

DS-3T0506HP-E/HS

Name: DS-3T0506HP-E/HS
Brand: Hikvision
SKU: 42259923992631
Price: 4956.86 INR
Availability: InStock

🚚 Free Delivery | ⭐ Top Brand | 🔒 Secure Transaction |

Rs. 4,956.86

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Aug 03 - Aug 07

Availability: In Stock Unavailable

Net weight	0.38 kg (0.84 lb)
Gross weight	0.94 kg (2.07 lb)
Dimension (L × H × D)	158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”)
Power source	65 W
Max. power consumption	65 W
Power consumption in idle	< 5 W
Shell	Metal material, fan-free design
Operating temperature	-30 °C to 65 °C (-22 °F to 149°F)
Storage temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	48 to 57 VDC, 1.35 A Max.

Long range	Ports 3 and 4: up to 300 m.
Port isolation	Ports 1 to 4: port isolation mode to improve network security.
PoE watchdog	Ports 1 to 4: auto detect and restart the cameras that do not respond.

EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Port number	3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports
Ports for long-distance transmission	Ports 3 and 4
Working mode	Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
Port type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode	Store-and-forward switching
MAC address table	4 K
Switching capacity	22 Gbps
Packet forwarding rate	8.928 Mpps
Internal cache	1.5 Mbits

Hi-PoE port	Port 1
PoE standard	Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE port	Ports 2 to 4
Max. port power	Port 1: 60 W Ports 2 to 4: 30 W
PoE power budget	60 W
