Description
General
| Net weight | 0.38 kg (0.84 lb) |
| Gross weight | 0.94 kg (2.07 lb) |
| Dimension (L × H × D) | 158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”) |
| Power source | 65 W |
| Max. power consumption | 65 W |
| Power consumption in idle | < 5 W |
| Shell | Metal material, fan-free design |
| Operating temperature | -30 °C to 65 °C (-22 °F to 149°F) |
| Storage temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 to 57 VDC, 1.35 A Max. |
Dialing function
| Long range | Ports 3 and 4: up to 300 m. |
| Port isolation | Ports 1 to 4: port isolation mode to improve network security. |
| PoE watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. |
Approval
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Network parameters

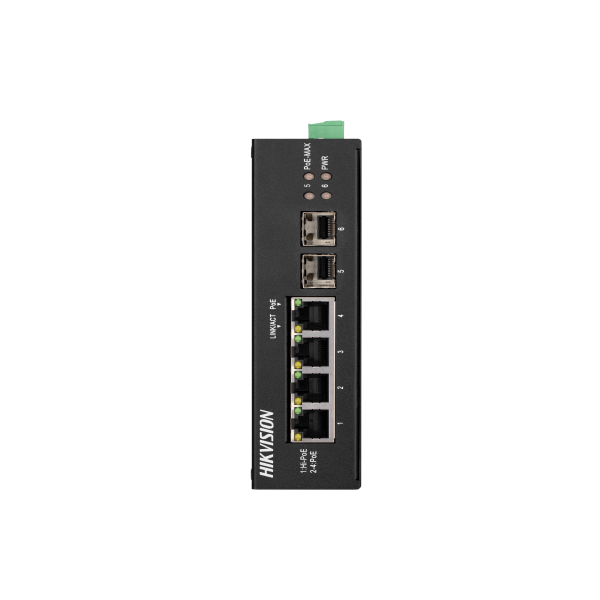

| Port number | 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports |
| Ports for long-distance transmission | Ports 3 and 4 |
| Working mode | Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab |
| Forwarding mode | Store-and-forward switching |
| MAC address table | 4 K |
| Switching capacity | 22 Gbps |
| Packet forwarding rate | 8.928 Mpps |
| Internal cache | 1.5 Mbits |
PoE power supply
| Hi-PoE port | Port 1 |
| PoE standard | Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. |
| PoE port | Ports 2 to 4 |
| Max. port power | Port 1: 60 W Ports 2 to 4: 30 W |
| PoE power budget | 60 W |
