| Min. illumination | 0.1 Lux@(F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25 (1/30) s to 1/50,000 s |
| Lens | 6 mm |
| Angle of view | 56.7° |
| Lens Mount | M12 |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Synchronization | Internal synchronization |
| Video Frame Rate | 720p@25fps/720p@30fps |
| Switch Button | TVI/AHD/CVI/CVBS |
| HD Video Output | 1 Analog HD output |
| S/N Ratio | >62dB |
| Effective Pixels | 1296 (H) × 732 (V) |
| Image Sensor | 1 MP CMOS image senso |

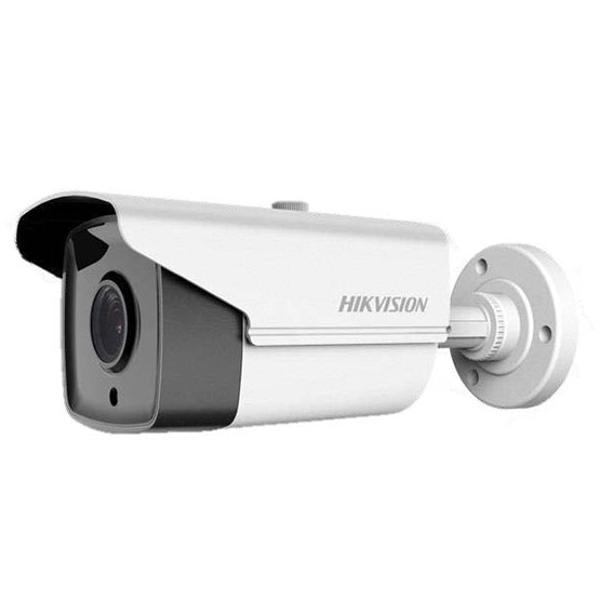

| Appearance | Bullet |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Power Supply | 12 V DC±15% |
| Power Consumption | Max. 4 W |
| Protection Level | IP66 |
| IR Range | Up to 20 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions | 86.7 mm × 81.6 mm × 226 mm (3.4" × 3.2" × 8.9") |
| Weight | 700 g (1.54 lb.) |
