Description
Specification
Product Model

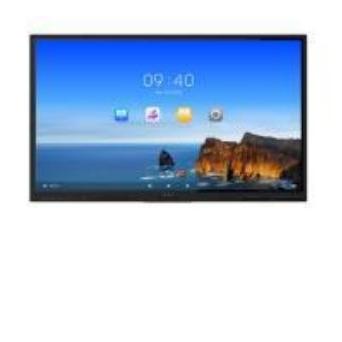

Product Model DS-D5B86RB/EL
Display
Screen Size 86 inch
Backlight DLED
Pixel Pitch 0.165 (H) × 0.494 (V) mm
Resolution 3840 × 2160 @60 Hz
Brightness 400 cd/m² (Typ.)
Color Depth 10 bit
Display Color 1.07G
Response Time 5ms
Panel Type VA
Contrast Ratio
5000:1 (Static)
30,000:1 (Dynamic)
Color Gamut 72% NTSC (CIE1931) (Typ.)
Refresh Rate 60 Hz
Viewing Angle 178°(H)/178°(V)
Aspect Ratio 16:9
Surface Haze 25% Haze
Display Area 1895.04 mm × 1065.96 mm
Working Duration 7 × 16H
Surface Hardness
9H (Pencil)
7 (Mohs)
Surface Glass 3.2 mm Anti-Glare Glass
Transmittance 88% ± 3
Lifespan 50,000 hours
Touch
Type Infrared Touch Screen
Touch Point 40-point multi-touch
Touch Response Time < 5 ms
Minimum Touch Object ≥ 2 mm (≥ 90% touching area)
Touch Precision ± 1 mm (≥ 90% touching area)
Touch Resolution 32767 × 32767
Built-in System
Operation System Android 13.0
Memory 8 GB
Built-in Storage 128 GB
CPU Cortex-A55 × 4 (1.92GHz)
HDCP Version Support 1.4/2.2/2.3
GPU Mali-G52 MP2 (2EE)
Internal Function
Loudspeaker Built-in 2 × 20 W
Speaker Frequency 200-20Khz
Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2
NFC Support card reader
Light Sensor Yes
Interface
Video & Audio Input HDMI In (HDMI 2.0) × 2, Audio In × 1
Video & Audio Output Audio Out × 1
Control Interface TOUCH-USB 2.0 × 1, RS232 × 1
Network Interface
LAN (100 Mbps) × 2
WIFI AP&Station,2.4G/5G
WIFI AP:IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication
protocols WEP, WPA, WPA2, PSK and 802.1X EAP
WIFI Station:IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz and 5 GHz)
authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (Type-C supports USB 2.0)
Power
Power Supply 100 to 240 VAC, 50/60 Hz
Standby Consumption ≤ 0.5 W
Max. Consumption 326 W
Average Consumption 268 W
General
Product Dimensions 1960.44 mm × 1164.69 mm × 82.5 mm
Package Dimensions (W × H × D) 2157 mm × 1345 mm × 223 mm
VESA 800 mm × 600 mm (4 × M8-25 mm)
Net Weight 59.71 kg
Gross Weight 79.0 kg
Accessary
Wall mount bracket, hook, user manual, stylus × 2, packing list, 1.5 m power cable
(European standard), remote controller
Working Environment
Working Temperature 0 °C to 40 °C (32 °
