<table border="1" cellspacing="0" cellpadding="6">
<!-- Compression Section -->
<tr>
<th colspan="2" style="background-color:#f2f2f2;">Compression</th>
</tr>
<tr>
<td>Video compression</td>
<td>H.265/H.264/MJPEG</td>
</tr>
<tr>
<td>H.265 Profile</td>
<td>Main Profile</td>
</tr>
<tr>
<td>H.264 Profile</td>
<td>Baseline Profile / Main Profile / High Profile</td>
</tr>
<tr>
<td>Video bit rate</td>
<td>32 Kbps to 8 Mbps</td>
</tr>
<tr>
<td>Video standard</td>
<td>G.711/G.722.1/G.726/MP2L2/PCM</td>
</tr>
<tr>
<td>Audio bit rate</td>
<td>64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32-192 Kbps (MP2L2)</td>
</tr>
<tr>
<td>SD card storage</td>
<td>Micro SD/Micro SDHC/Micro SDXC (128GB or 256GB)</td>
</tr>
<tr>
<td>NVR storage</td>
<td>Supports live view/playback, rule display, alarm report, remote configuration</td>
</tr>
<!-- Network Section -->
<tr>
<th colspan="2" style="background-color:#f2f2f2;">Network</th>
</tr>
<tr>
<td>Main stream</td>
<td>
Visible light: 50Hz: 25fps (1920×1080), 25fps (1280×960), 25fps (1280×720)<br>
60Hz: 30fps (1920×1080), 30fps (1280×960), 30fps (1280×720)<br>
Thermal Imaging: 25fps (160×120 output 320×240)
</td>
</tr>
<tr>
<td>Sub stream</td>
<td>
Visible light: 50Hz: 25fps (704×576), 25fps (640×480)<br>
60Hz: 30fps (704×480), 30fps (640×480)<br>
Thermal Imaging: 25fps (160×120 output 320×240)
</td>
</tr>
<tr>
<td>Network protocol</td>
<td>P, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP</td>
</tr>
<tr>
<td>Interface protocol</td>
<td>ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome, GB28181</td>
</tr>
<tr>
<td>Max. live view channels</td>
<td>20</td>
</tr>
<tr>
<td>User</td>
<td>Administrator, Operator, General User</td>
</tr>
<tr>
<td>Safety strategy</td>
<td>User/password authentication, HTTPS encryption, IEEE 802.1x control, IP address filtering</td>
</tr>
<!-- Interface Section -->
<tr>
<th colspan="2" style="background-color:#f2f2f2;">Interface</th>
</tr>
<tr>
<td>Alarm input</td>
<td>1, 0 to 5 V alarm input</td>
</tr>
<tr>
<td>Alarm output</td>
<td>1, NO relay output, alarm type configurable</td>
</tr>
<tr>
<td>Audio input</td>
<td>1, 3.5mm Mic in/Line in (2-2.4 Vp-p)</td>
</tr>
<tr>
<td>Audio output</td>
<td>1, 600 Ω</td>
</tr>
<tr>
<td>Reset button</td>
<td>1</td>
</tr>
<tr>
<td>Network interface</td>
<td>1, RJ45 10/100M self-adaptive</td>
</tr>
<tr>
<td>RS-485 interface</td>
<td>1</td>
</tr>
<tr>
<td>SD card slot</td>
<td>1</td>
</tr>
<tr>
<td>Client</td>
<td>iVMS-4200 / HIK-CONNECT</td>
</tr>
<tr>
<td>Browser support</td>
<td>IE7+, Chrome18+, Firefox5.0+, Safari5.02+</td>
</tr>
<!-- General Section -->
<tr>
<th colspan="2" style="background-color:#f2f2f2;">General</th>
</tr>
<tr>
<td>Power supply</td>
<td>110~240 VAC, 50-60Hz</td>
</tr>
<tr>
<td>Consumption</td>
<td>< 72W</td>
</tr>
<tr>
<td>Operation temp & humidity</td>
<td>
Turret camera: -40℃ to 40℃, <95% RH<br>
Walk-through detector: -20℃ to 85℃, 99% RH
</td>
</tr>
<tr>
<td>Protective level</td>
<td>Turret camera: IP66, Walk-through detector: IP53</td>
</tr>
<tr>

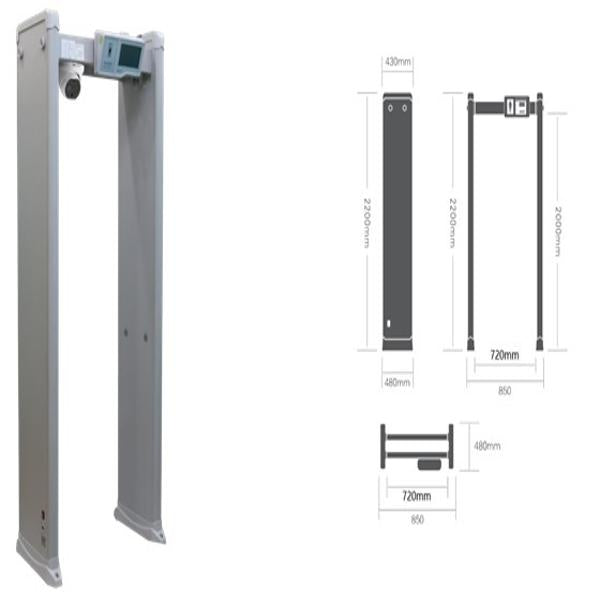

<td>Detector dimension</td>
<td>2200 × 850 × 480 mm (H × W × D)</td>
</tr>
<tr>
<td>Turret camera dimension</td>
<td>138.3 × 138.3 × 123.1 mm (H × W × D)</td>
</tr>
<tr>
<td>Package dimension</td>
<td>2270 × 700 × 230 mm (H × W × D)</td>
</tr>
<tr>
<td>Net weight</td>
<td>About 50 Kg</td>
</tr>
<!-- Thermal Imaging Section -->
<tr>
<th colspan="2" style="background-color:#f2f2f2;">Thermal Imaging</th>
</tr>
<tr>
<td>Sensor</td>
<td>Vanadium oxide uncooled sensor</td>
</tr>
<tr>
<td>Max. Resolution</td>
<td>160 × 120</td>
</tr>
<tr>
<td>Pixel Interval</td>
<td>17 μm</td>
</tr>
<tr>
<td>Response Waveband</td>
<td>8 to 14 μm</td>
</tr>
<tr>
<td>NETD</td>
<td>≤ 40 mK (@25°C, F#=1.0)</td>
</tr>
<tr>
<td>Lens (Focal Length)</td>
<td>3 mm</td>
</tr>
<tr>
<td>MRAD</td>
<td>9.44</td>
</tr>
<tr>
<td>Field of View</td>
<td>50° × 37.2°</td>
</tr>
<tr>
<td>Min. Focusing Distance</td>
<td>0.5 m</td>
</tr>
<tr>
<td>Aperture</td>
<td>1.1</td>
</tr>
<tr>
<td>Pseudo Color</td>
<td>15 types: white heat, black heat, fusion1, rainbow, fusion2, iron oxide red1, iron oxide red2, puce, color1, color2, ice & fire, rain, red heat, green heat, dark blue</td>
</tr>
<!-- Visible Light Section -->
<tr>
<th colspan="2" style="background-color:#f2f2f2;">Visible Light</th>
</tr>
<tr>
<td>Sensor</td>
<td>4 MP 1/2.7" Progressive Scan CMOS</td>
</tr>
<tr>
<td>Resolution</td>
<td>2688 × 1520 @25fps</td>
</tr>
<tr>
<td>Min. illuminance</td>
<td>0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR</td>
</tr>
<tr>
<td>Shutter speed</td>
<td>1/3s to 1/100,000s</td>
</tr>
<tr>
<td>Focal length</td>
<td>4 mm</td>
</tr>
<tr>
<td>Field angle</td>
<td>84.0° × 44.8°</td>
</tr>
<tr>
<td>Day/Night switch</td>
<td>ICR</td>
</tr>
<tr>
<td>WDR range</td>
<td>120 dB</td>
</tr>
<tr>
<td>IR distance</td>
<td>Max. 15 m</td>
</tr>
<tr>
<td>Image frame</td>
<td>Thermal imaging integrated with visible light frame</td>
</tr>
<tr>
<td>Picture in picture</td>
<td>Supports visible light and thermal imaging frame overlay</td>
</tr>
<!-- Smart Function Section -->
<tr>
<th colspan="2" style="background-color:#f2f2f2;">Smart Function</th>
</tr>
<tr>
<td>Linkage alarm</td>
<td>Linkage of strobe light and audible alarm</td>
</tr>
<!-- Temperature Measurement Section -->
<tr>
<th colspan="2" style="background-color:#f2f2f2;">Temperature Measurement</th>
</tr>
<tr>
<td>Temperature exception detection</td>
<td>Expert mode: 10 points, 10 frame, 21 rules on each line</td>
</tr>
<tr>
<td>Skin-surface temperature detection</td>
<td>AI detection, multi-target detection</td>
</tr>
<tr>
<td>Measurement range</td>
<td>30 to 45℃</td>
</tr>
<tr>
<td>Temperature alarm</td>
<td>Triggered when temperature exceeds threshold</td>
</tr>
<tr>
<td>Measurement accuracy</td>
<td>No black body: ±0.5℃, With black body: ±0.3℃</td>
</tr>
</table>
