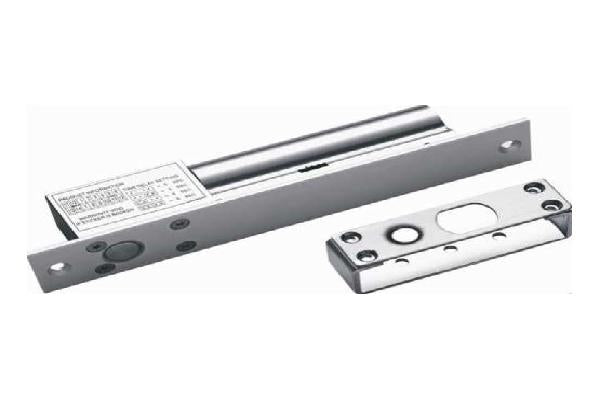

Hikvision Lock DS-K4T108

Others

Input Voltage12VDC

Working Current≤1.2A (Startup Current) 0.2A (Standby)

Signal OutputDry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking;

Suitable DoorsWooden Door, Glass Door, and Metal Door

Delay Duration0/3/6/9s Optional

Surface Temperature≤ Ambient Temperature +10°C (50°F)

Working Temperature-10°C~+55°C (14°F~131°F)

Working Humidity0~95% (Relative Humidity)

ShellHard Anodizing Electroplating Operated

Weight0.74kg
