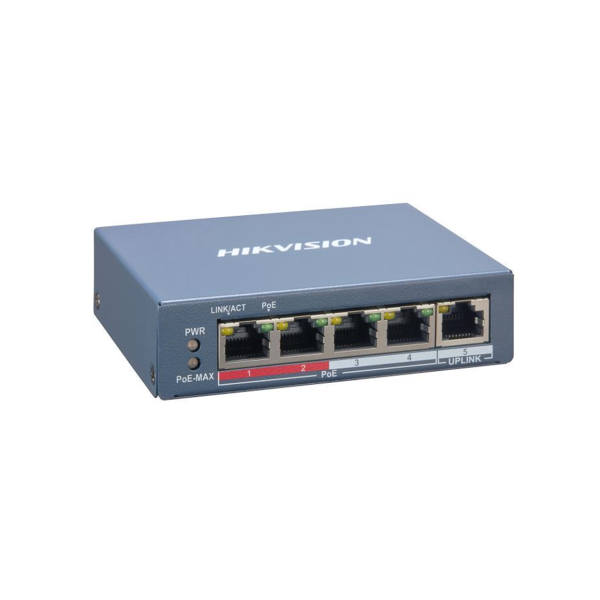

DS-3E1105P-EI

Name: DS-3E1105P-EI
Brand: Hikvision
SKU: 42277344313399
Price: 2501.0 INR
Availability: InStock

🚚 Free Delivery | ⭐ Top Brand | 🔒 Secure Transaction |

Rs. 2,501.00

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Aug 10 - Aug 14

Availability: In Stock Unavailable

Net Weight	0.22 kg (0.49 lb)
Dimension (L × H × D)	105 mm × 27.6 mm × 83.1 mm (4.76” × 3.47” × 1.09”)
Power source	65 W
Max. power consumption	65 W
Shell	Metal material, fan-free design
Operating temperature	0°C to 40°C (32°F to 104°F)
Storage temperature	-40°C to 85°C (-40°F to 185°F)
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	48 VDC, 1.35 A

EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD(EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Typology display	Support typology display.
PoE function	IEEE 802.3at/af device provides power supply.
Device status alarm	Support the device status, PoE_MAX and PoE status alarm.
Network management	Support client management.
Port statistics	Support port transmitting/receiving real-time rate statistics, 7-day transmitting/receiving peak rate statistics.
Device maintenance	Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
Port configuration	Support rate, flow control, and switch configuration

Ports for long-distance transmission	Ports 1 to 4
High priority ports	Ports 1 and 2
Working mode	Standard mode (default), Extend mode
Standard	IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
Forwarding mode	Store-and-forward switching
MAC address table	2 K
Switching capacity	1 Gbps
Packet forwarding rate	0.744 Mpps
Internal cache	768 Kbits

PoE port Ports	1 to 4
PoE standard	Ports 1 to 4: IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
Max. port power	30 W
PoE power budget	60 W
