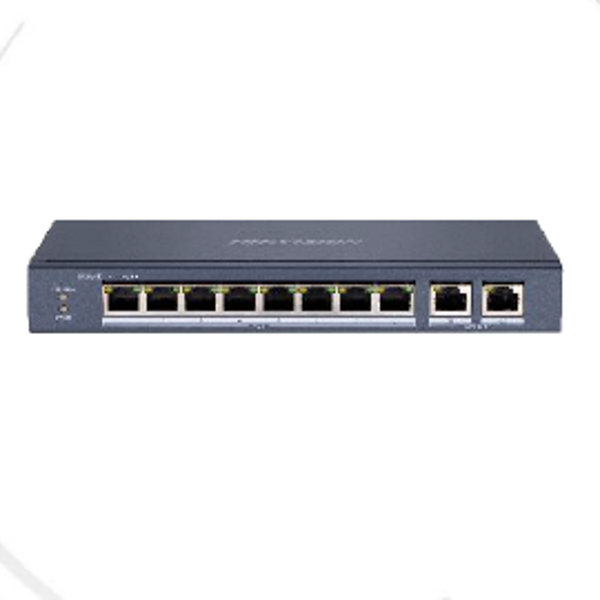

DS-3E0310P-E/M

Name: DS-3E0310P-E/M
Brand: Hikvision
SKU: 42259923664951
Price: 3176.88 INR
Availability: InStock

🚚 Free Delivery | ⭐ Top Brand | 🔒 Secure Transaction |

Rs. 3,176.88

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Sep 19 - Sep 23

Availability: In Stock Unavailable

Net weight	0.555 kg (1.22 lb)
Gross weight	1.20 kg (2.65 lb)
Dimension (L × H × D)	217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)
Power source	65 W
Max. power consumption	65 W
Power consumption in idle	< 5 W
Shell	Metal material, fan-free design
Operating temperature	-10°C to 40°C (14°F to 104°F)
Storage temperature	-40°C to 85 °C -40°F to 185°F)
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	48 VDC, 1.35 A

Long range

Ports 1 to 8: up to 300 m.

EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Port number	8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports
Ports for long-distance transmission	Ports 1 to 8
Working mode	Standard mode (default), Extend mode
Port type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode	Store-and-forward switching
MAC address table	16 K
Switching capacity	5.6 Gbps
Packet forwarding rate	4.1664 Mpps
Internal cache	4 Mbits

PoE standard	Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE port	Ports 1 to 8
Max. port power	Ports 1 to 8: 30 W
PoE power budget	60 W
