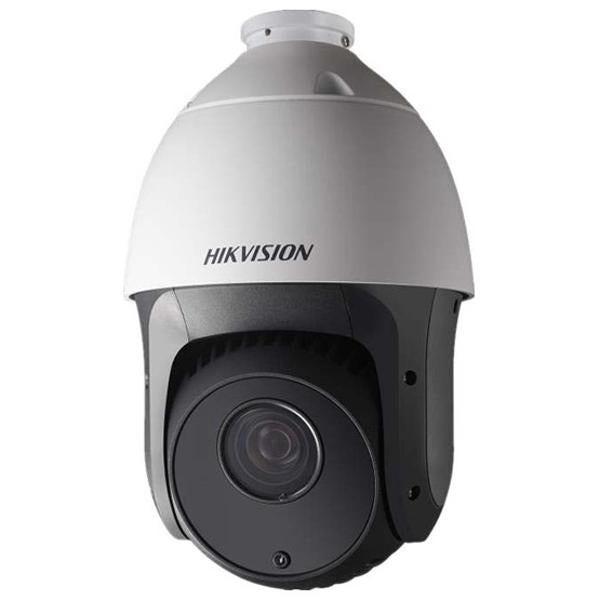

DS-2AE5123TI-A C

Name: DS-2AE5123TI-A C
Brand: Hikvision
SKU: 42277340250167
Price: 31110.0 INR
Availability: InStock

🚚 Free Delivery | ⭐ Top Brand | 🔒 Secure Transaction |

Rs. 31,110.00

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Aug 10 - Aug 14

Availability: In Stock Unavailable

Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	256
Patrol	8 patrols, up to 32 presets per patrol
RS-485 communication diagnosis	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
Power-off Memory	Support
PTZ Position Display	On / Off
Preset Freezing	Support
Scheduled Task	Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan
Pattern	4 patterns, with the total recording time not less than 10 minutes
Pan Range	360° endless
Pan Speed	Pan Manual Speed: 0.1°-400°/s,Pan Preset Speed: 400°/s
Tilt Range	-15°-90° (Auto Flip )
Tilt Speed	Tilt Manual Speed: 0.1°-120°/s,Tilt Preset Speed: 200°/s

IR Distance	150m
IR Intensity	Automatically adjusted, depending on the zoom ratio

Min. illumination	Color: 0.05Lux@(F1.4,AGC ON)B/W: 0.005Lux@(F1.4,AGC ON)
S / N Ratio	≥ 50dB
3D DNR	Support
Backlight Compensation	Support
Focus Model	Auto / Semiautomatic / Manual
Frame Rate	50Hz:25fps(1280×720), 50fps (1280×720)60Hz:30fps(1280×720), 60fps (1280×720)
Digital Zoom	16x
White Balance	Auto / Manual / ATW / Indoor / Outdoor
AGC	Auto / Manual
WDR	Support
Shutter Time	PAL: 1-1/10,000s NTSC: 1-1/10,000s
Day & Night	IR Cut Filter
Privacy Mask	8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen

Mounting	Various mounting modes optional
Menu Language	English, Chinese
Power	24VAC Outdoor dome: Max. 20W (Heater On), Max. 12W(Heater Off) Indoor dome: Max.12W
Protection Level	IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection
Weight (approx.)	4Kg (8.81Ibs)
Dimensions	Φ185×330mm (Φ7.28”×12.99”)
Humidity	90% or less

Turbo HD Output	1 turbo HD720p output, BNC
CVBS Output	1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
RS-485 Interface	Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function	HIKVISION_C
Alarm Input	2
Alarm Output	1
