Description
Conductor
| Material | Solid-Bare Copper (99.95%) |
| Diameter | 0.50 ± 0.01 mm |
Insulation
| Diameter | 0.88 ± 0.05 mm |
| Material | HDPE |
Sheath
| Thickness | 0.50 ± 0.05 mm |
| Material | PVC |
| Color | Grey、Orange |
| Diameter | 5.30 ± 0.50 mm |
Rip-cord
| Rip-cord | Yes |
Reference standard
| Reference standard | ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0 |
Fire resistance
| Fire resistance | No |
Separator
| Separator | Yes |
Sheath physical properties
| Before aging | Tensile strength ≥ 13.5 Mpa Elongation ≥ 150% |
| Aging period | 100°C × 24h × 10d |
| After aging | Tensile strength ≥ 12.5 Mpa Elongation ≥ 125% |
| Cold bend | -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks |
Electrical Characteristics (20°C)
| 1.0-250.0 MHz impedance | 100 ± 15 Ω |
| 1.0-250.0 MHz delay skew | ≤ 45 ns/100 m |
| DC resistance | ≤ 9.38 Ω/100 m |
| DC conductor resistance unbalance | ≤ 4.0% |

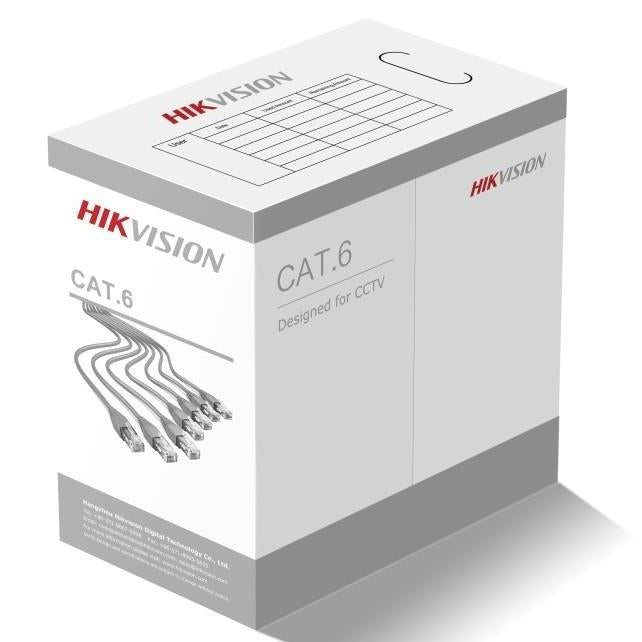

| Package dimension | 390 mm X 390 mm X 210mm |
| Weight | 9.9 ± 0.5 kg |
| Cable length | (305 ± 1.5) m |
| Ambient temperature | -20°C to 70°C |
| Operating voltage | 57 V |
