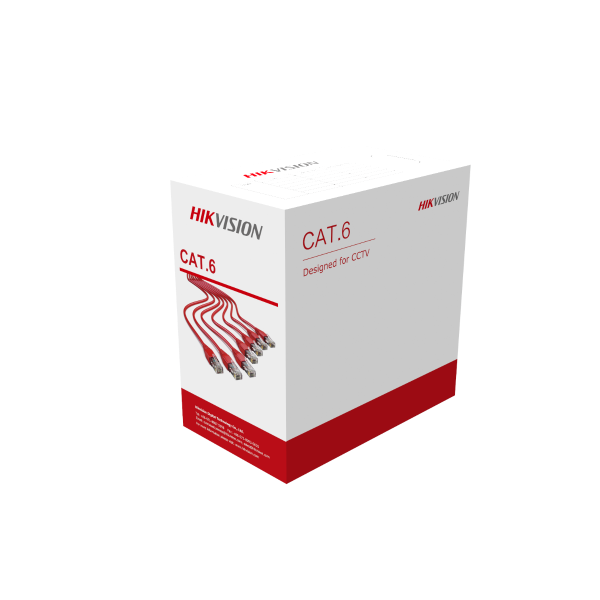

DS-1LN6U-G

Name: DS-1LN6U-G
Brand: Hikvision
SKU: 42277340053559
Price: 15591.6 INR
Availability: InStock

🚚 Free Delivery | ⭐ Top Brand | 🔒 Secure Transaction |

Rs. 15,591.60

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 24 - Jun 28

Availability: In Stock Unavailable

Material	Solid-Bare Copper (99.95%)
Diameter	0.55 ± 0.005 mm, 23 AWG

Diameter	0.98 ± 0.05 mm
Material	HDPE

Before aging	Tensile strength ≥ 13.5 Mpa Elongation ≥ 150%
Aging period	100°C × 24h × 10d
After aging	Tensile strength ≥ 12.5 Mpa Elongation ≥ 125%
Cold bend	-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks

1.0-250.0 MHz impedance	100 ± 15 Ω @ ≤ 100 MHz 100 ± 25 Ω @100-250 MHz
1.0-250.0 MHz delay skew	≤ 45 ns/100 m
DC resistance	≤ 9.38 Ω/100 m
DC conductor resistance unbalance	≤ 5.0%
Package dimension	400 mm (W) × 400 mm (H) × 240 mm (D) (15.75" × 15.75" × 9.45")
Weight	12.3 ± 0.5kg
Cable length	(305 ± 1.5) m
Ambient temperature	-20°C to 75°C (-4°F to 167°F)
Operating voltage	60 V
