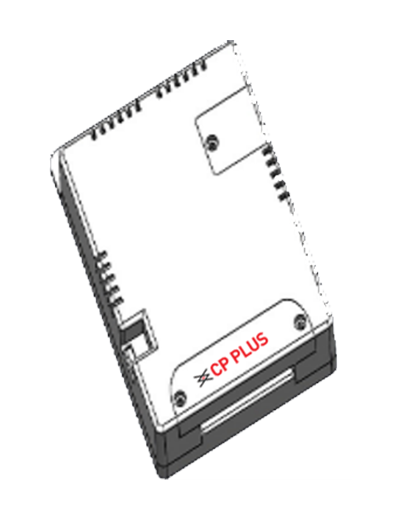

CP Plus POWER SUPPLY CP-CPS-PD08-12D

Name: CP Plus POWER SUPPLY CP-CPS-PD08-12D
Brand: CP Plus
SKU: 42194664521783
Price: 441.64 INR
Availability: InStock

🚚 Free Delivery | ⭐ Top Brand | 🔒 Secure Transaction |

Rs. 441.64

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 11 - Jun 15

Availability: In Stock Unavailable

No specifications available

Input AC Voltage Range	170V~250V AC
Input AC Voltage Rated	220-240V AC
AC Current (Typ.)	2A@90VAC
Rated Power	72W
Inrush Current (Typ.)	COLD START 40A@230V AC
Leakage Current	< 2mA@230VAC
Efficiency (Typ.)	≥ 85%
Frequency Range	50Hz
Output DC No Load Rated Voltage	12-12.5V, 14V-14.5V, 15-15.5V
Output DC On Load Rated Voltage	11.2-12.6V, 13.2-14.2V, 14.2-15.2V
Output DC Current Range	0-5A, 0-4.25A, 0-4A
DC Power (Pout) Max	60W, 60W, 60W
Ripple & Noise (max.)	<240mV, <270mV, <300mV
Load Efficiency	85%, 86%, 86%
Setup Start up Time	< 2S@230VAC
Line Regulation	±2%
Load Regulation	±2%
Lead Cable Compensation	<3% OF DC NO LOAD VOLTAGE
Over Voltage Protection	Support
Over Current Protection	YES, 110%-150%OF RATED CURRENT
DC Short Circuit	YES With Auto Restart Function
Over Temperature	Hiccup Mode, recovers automatically after faults removed
Safety Standard	IEC-60950-1-2005/IS-13252(PART-1):2010
Withstand Voltage	I/P-O/P:3KVAC, I/P-FG:1.5KVAC, O/P-FG:1.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG,O/P-FG:100Mohm/500VDC
Production Isolation	CLASS-II
IP Protection	IP20
EMC Immunity	SURGE SUSCEPTIBILITY IEC-61000-4-5 L TO N AND N TO L, LEVEL-3 , 3KV/ 2 ohm, (0°/90°/270°) ±5 TIMES ESD, IEC-61000-4-2 LEVEL3 8KV AIR, LEVEL 2 4KV CONTACT
Working temperature	0 to +40°C
Working Humidity	10% ~ 95%RH
Case Temperature	≤70°C
Dimension	165mm x 115mm x 35mm
Body Type	PC-FR-4
Weight	245gm
