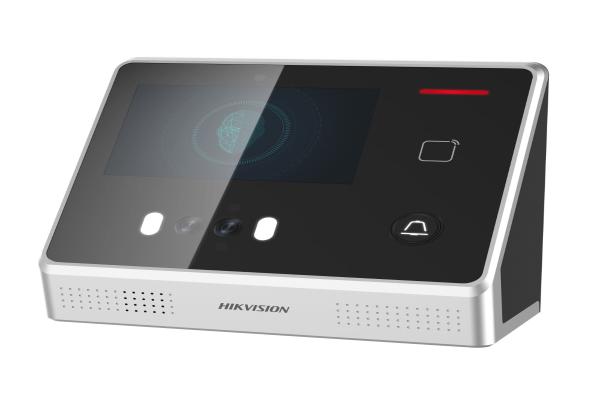

Hikvision DS-K1T605EF

DS-K1T605EF

Face Recognition Terminal

• Wall mounting and base mounting
• 12.7cm(5-inch) LCD touch screen to display operation interface, etc.
• 0.3 MP wide-angle lens
• Face recognition distance: 0.3m to 1m
• Live face detection
• High performance processor with deep learning algorithm
• Max. 2000 face pictures and Max. 5000 fingerprints storage (Only models with F support the fingerprint related functions)
• Multiple authentication modes: authentication by comparing face picture, by swiping card and comparing face picture, by custom mode, etc.
• Accurate and fast face recognition function. The face recognition duration is no more than 1 s per person and the face recognition accuracy rate is more than 99%
• Applies face picture data and card data to the device via TCP/IP or uploading them to the device via the USB flash drive
• Stand-alone operation
• Transmits and saves the comparing results and the captured face pictures to the client software or others
• Supports TCP/IP, Wi-Fi , and EHome public network communication
• Connects to one external card reader via RS-485 communication and Wiegand communication
• Connects to external access controller via Wiegand communication
• Connects to secure door control unit to avoid the door opening when the terminal is destroyed
• Watchdog design for protecting the device and ensuring device running properly
• Voice prompt


  SPECIFICATIONS

  • Operation SystemLinux
  • LCD Screen12.7cm(5-inch) LCD Touch Screen; Resolution: 800 × 480
  • Camera0.3 MP Wide-Angle
  • Fingerprint Capacity5000
  • Face Picture Capacity2000
  • Face Recognition Distance0.3 m to 1 m
  • Face Recognition Accuracy Rate≥ 99%
  • 1:N Face Recognition Duration≤ 1 s/Person
  • Card Capacity5000
  • Event Capacity100000
  • Communication Mode10/100Mbps Self-Adaptive; Wi-Fi
  • InterfaceRS-485 × 1, Wiegand × 1, USB 2.0 × 1, Door Magnetic Sensor × 1, Exit Button × 1, Door Bell × 1, Tamper × 1, Alarm Input × 2, Alarm Output × 1, Lock × 1
  • Power Supply12 VDC/2 A
  • Battery/
  • Working Temperature10 °C to +50 °C (14 °F to +122 °F)
  • Working Humidity10% to 90% (Non Condensing)
  • Installing MethodBase Mounting; Wall Mounting
  • DimensionsDimensions
  • Application SituationIndoor
