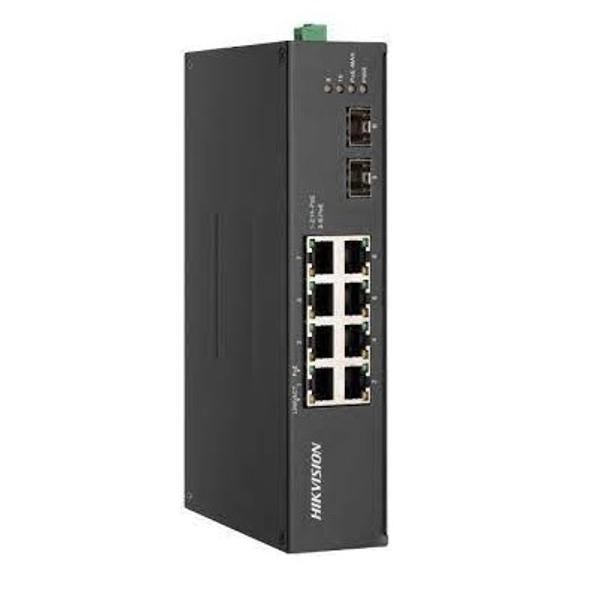

DS-3T0510HP-E/HS

Name: DS-3T0510HP-E/HS
Brand: Hikvision
SKU: 42259924025399
Price: 8514.38 INR
Availability: InStock

🚚 Free Delivery | ⭐ Top Brand | 🔒 Secure Transaction |

Rs. 8,514.38

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Aug 03 - Aug 07

Availability: In Stock Unavailable

Net weight	0.585 kg (1.29 lb)
Gross weight	1.11 kg (2.45 lb)
Dimension (L × H × D)	197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)
Power source	120 W
Max. power consumption	120 W
Power consumption in idle	< 10 W
Shell	Metal material, fan-free design
Operating temperature	-30 °C to 65 °C (-22 °F to 149 °F)
Storage temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	48 to 57 VDC, 2.5 A Max.

Long range	Ports 7 and 8: up to 300 m.
Port isolation	Ports 1 to 8: port isolation mode to improve network security.
PoE watchdog	Ports 1 to 8: auto detect and restart the cameras that do not respond.

EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Ports for long-distance transmission	Ports 7 and 8
Working mode	Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode	Store-and-forward switching
MAC address table	4 K
Switching capacity	20 Gbps
Packet forwarding rate	14.88 Mpps
Internal cache	1.5 Mbits

Hi-PoE port	Ports 1 and 2
PoE standard	Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 3 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports 1, 2, 7 and 8: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. Ports 3 to 6: Ethernet cables 1/2/3/6 provide power supply.
PoE port	Ports 3 to 8
Max. port power	Ports 1 and 2: 90 W Ports 3 to 8: 30 W
PoE power budget	110 W
