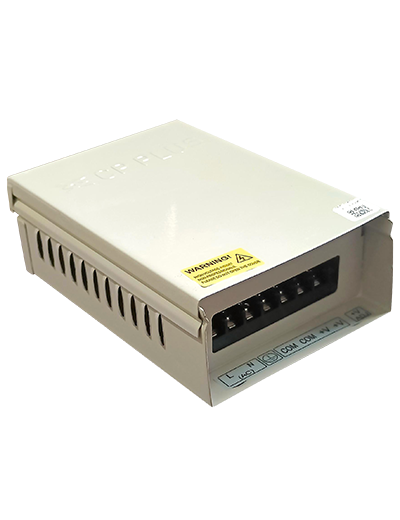

CP Plus Power Supply CP-DPS-MD100P-12D

CP Plus Power Supply CP-DPS-MD100P-12D

CP Plus Power Supply CP-DPS-MD100P-12D

🚚 Free Delivery | ⭐ Top Brand | 🔒 Secure Transaction |

Rs. 683.20

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 11 - Jun 15

Availability: In Stock Unavailable

CP-DPS-MD100P-12D

Metal Case SMPS Power Supply (Premium Series)

Wide range of Input voltage 190~250V AC
Higher power budget can add more cameras
Short circuit, over voltage and over current protection
Power on indicator
Voltage regulator pot for cable compensation
Built-in EMI filter to nullify interference
100% Full load burn-in test
Metal housing for uniform & quick heat dissipation
Wall mount option along with desktop

Screw type block terminals for easy installation

Input voltage	190 ~ 250VAC
Input AC Frequency Range	47 ~ 63Hz
Input Current (Typ.)	3.0A/230VAC
Power Cord	3 Pin (L, N & Earth)
Standby Power Consumption	≤3.0W
Inrush Current (Typ.)	40A@230VAC
Efficiency (Typ.)	80%
Output voltage	12V
Output Current	10.0A
Output Current range	0 ~ 10.0A
Rated Power	120W
Ripple & Noise (max.)	≤200mV
Line Regulation	3%
Load Regulation	5%
Power On Indicator	Support
Cable Compensation	Support, (trimmer pot)
No. of Output Ports	Single port
Over Voltage Protection	Support
Over Current Protection	Support
Short circuit protection	Support
Insulation Resistance	100MΩ@500VDC
Operating Temperature	-10°C~+40°C
Operating Humidity	20~90% RH non-condensing
Storage Temperature	-20°C~+85°C
Storage humidity	10~95% RH
Dimension	187mm x 103mm x 52mm
Wall mount option	Support

CP Plus Power Supply CP-DPS-MD100P-12D

CP Plus Power Supply CP-DPS-MD100P-12D

Rs. 683.20
