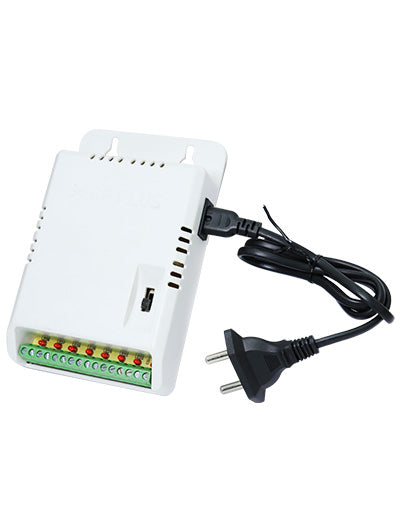

CP Plus POWER SUPPLY CP-CPS-PD04-12D

Name: CP Plus POWER SUPPLY CP-CPS-PD04-12D
Brand: CP Plus
SKU: 42194664554551
Price: 398.94 INR
Availability: InStock

🚚 Free Delivery | ⭐ Top Brand | 🔒 Secure Transaction |

Rs. 398.94

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 11 - Jun 15

Availability: In Stock Unavailable

No specifications available

Input voltage	150VAC - 240VAC
Output Connector	Terminal Block Type
Output voltage	12V DC
Current Range	0-1A Each Channel
Voltage Adj. Range	12V DC - 15V D
Ripple & Noise (max.)	<200mV
Rated Power	48W
Voltage Tolerance	10%
Line Regulation	<3% at 150Vac-240Vac
Linear modulate	SMPS (Switch mode power supply)
Load Regulation	<10% at 150VAC-240VAC
Setup Rise time	30mS max @ rated load, output voltage from 10% to 90%.
Hold Up Time (Typ.)	30ms max @ full load & 230Vac input turn of
Temperature coefficient	Max 75 degree
start time	30mS max @ rated load, output voltage from 10% to 90%.
Frequency Range	50Hz-60Hz. Normal
Efficiency (Typ.)	70%
AC Current (Typ.)	1.2A Max @ max 100-240VAC Input & full load
guard time	MAX 2Sec@ 150-240VAC at Input & full load
override protection	Supported
Inrush Current (Typ.)	50A max @ 240 Vac input & full load
Leakage Current	0.008 A Max.
Over Voltage Protection	Supported
short-circuit protection	Supported (AUTO RECOVERY)
Over Load	Supported
Withstand Voltage	Input (100 - 240)V AC/ Output (12 -15)V DC
Isolation Resistance	50MΩ min at primary to secondary add 500Vdc test voltage
Over Current	Supported
Working temperature	-10°C to +45°C
Store temperature	-40°C to +70°C
Weight	233.1gm
Working Humidity	5% to 95%
Dimension	154.7mm x 97.38mm x 32.90mm
Body Type	Plastics ABS
