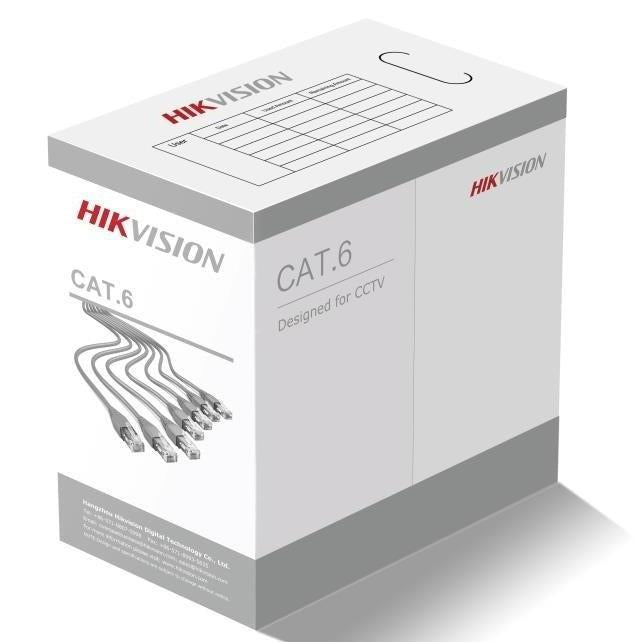

Hikvision DS-1LN6UZC0

Name: Hikvision DS-1LN6UZC0
Brand: Hikvision
SKU: 42142591582263
Price: 9272.0 INR
Availability: OutOfStock

🚚 Free Delivery | ⭐ Top Brand | 🔒 Secure Transaction |

Rs. 9,272.00

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 11 - Jun 15

Availability: In Stock Unavailable

Conductor

Material	Solid-Bare Copper (99.95%)
Diameter	0.50 ± 0.01 mm

Insulation

Diameter	0.88 ± 0.05 mm
Material	HDPE

Sheath

Thickness	0.50 ± 0.05 mm
Material	PVC
Color	Grey、Orange
Diameter	5.30 ± 0.50 mm

Rip-cord

Rip-cord

Yes

Reference standard

Reference standard

ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0

Fire resistance

Fire resistance

Separator

Separator

Yes

Sheath physical properties

Before aging	Tensile strength ≥ 13.5 Mpa Elongation ≥ 150%
Aging period	100°C × 24h × 10d
After aging	Tensile strength ≥ 12.5 Mpa Elongation ≥ 125%
Cold bend	-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks

Electrical Characteristics (20°C)

1.0-250.0 MHz impedance	100 ± 15 Ω
1.0-250.0 MHz delay skew	≤ 45 ns/100 m
DC resistance	≤ 9.38 Ω/100 m
DC conductor resistance unbalance	≤ 4.0%
Package dimension	390 mm X 390 mm X 210mm
Weight	9.9 ± 0.5 kg
Cable length	(305 ± 1.5) m
Ambient temperature	-20°C to 70°C
Operating voltage	57 V
